Standardisation of PTO Spline for Agricultural Equipment
.png)
Overview
For this project, our client needed to adapt a large rotating HDPE tube to a standard six-spline 3 3/16” PTO interface commonly used in agricultural equipment. Using standard components was essential to keep long-term costs low and avoid oversized custom parts. The HDPE tube presented a key challenge since it was prone to deformation, and reducing its diameter risked high stress concentrations under torque. To address these issues, we combined hand calculations with FEA to design a reinforced metal adaptor, ensuring the PTO spline could handle the expected loads without failure.
Methodology
We began by performing hand calculations at the predicted torque levels. Then, we compared the results with FEA studies to determine the correct metal plate thickness and ensure the standard spline would not shear. The metal components were cut, welded, and finished in preparation for assembly. To create precise slots for the PTO head in the HDPE tube, we designed and 3D-printed custom jigs, which guided a hand router to accurately cut the material. However, on installation, the routed HDPE had deformed slightly, reducing the slot cross-section. We corrected this by sharpening the edges and pressing the PTO adaptor into place using a combination of hydraulic force and hand tools to ensure a secure fit.
Results Discussion
The finished adaptor fitted securely on both ends of the system and transmitted torque effectively without any mechanical failures. This project showed that standard agricultural PTO components can work reliably with deformable materials like HDPE as long as stress concentrations are carefully managed and fabrication is adapted to material behaviour. The process highlighted the value of verifying spline shear limits early, using 3D-printed jigs for precise slot cutting, and applying hands-on problem-solving on-site to correct deformation caused during routing. The final solution met the client’s functional requirements and maintained compatibility with standard components to keep long-term costs low.
For this project, our client needed to adapt a large rotating HDPE tube to a standard six-spline 3 3/16” PTO interface commonly used in agricultural equipment. Using standard components was essential to keep long-term costs low and avoid oversized custom parts. The HDPE tube presented a key challenge since it was prone to deformation, and reducing its diameter risked high stress concentrations under torque. To address these issues, we combined hand calculations with FEA to design a reinforced metal adaptor, ensuring the PTO spline could handle the expected loads without failure.
Methodology
We began by performing hand calculations at the predicted torque levels. Then, we compared the results with FEA studies to determine the correct metal plate thickness and ensure the standard spline would not shear. The metal components were cut, welded, and finished in preparation for assembly. To create precise slots for the PTO head in the HDPE tube, we designed and 3D-printed custom jigs, which guided a hand router to accurately cut the material. However, on installation, the routed HDPE had deformed slightly, reducing the slot cross-section. We corrected this by sharpening the edges and pressing the PTO adaptor into place using a combination of hydraulic force and hand tools to ensure a secure fit.
Results Discussion
The finished adaptor fitted securely on both ends of the system and transmitted torque effectively without any mechanical failures. This project showed that standard agricultural PTO components can work reliably with deformable materials like HDPE as long as stress concentrations are carefully managed and fabrication is adapted to material behaviour. The process highlighted the value of verifying spline shear limits early, using 3D-printed jigs for precise slot cutting, and applying hands-on problem-solving on-site to correct deformation caused during routing. The final solution met the client’s functional requirements and maintained compatibility with standard components to keep long-term costs low.
Torque and stress assessment

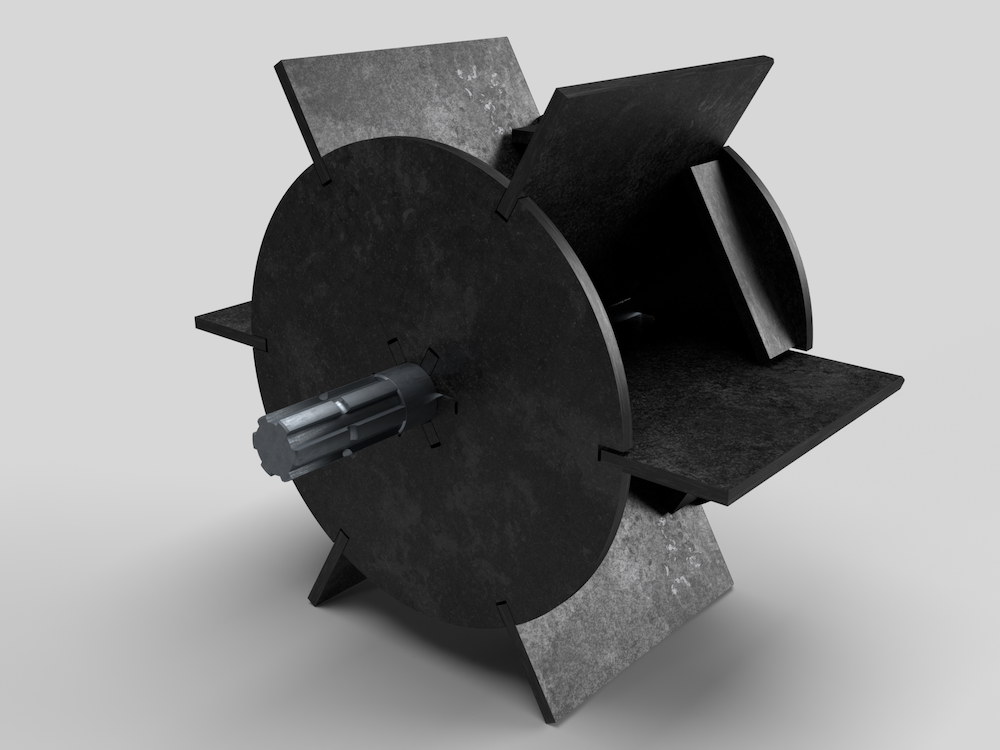

Spline compatibility design
Hand calculations and FEA comparison
Metal plate sizing and fabrication

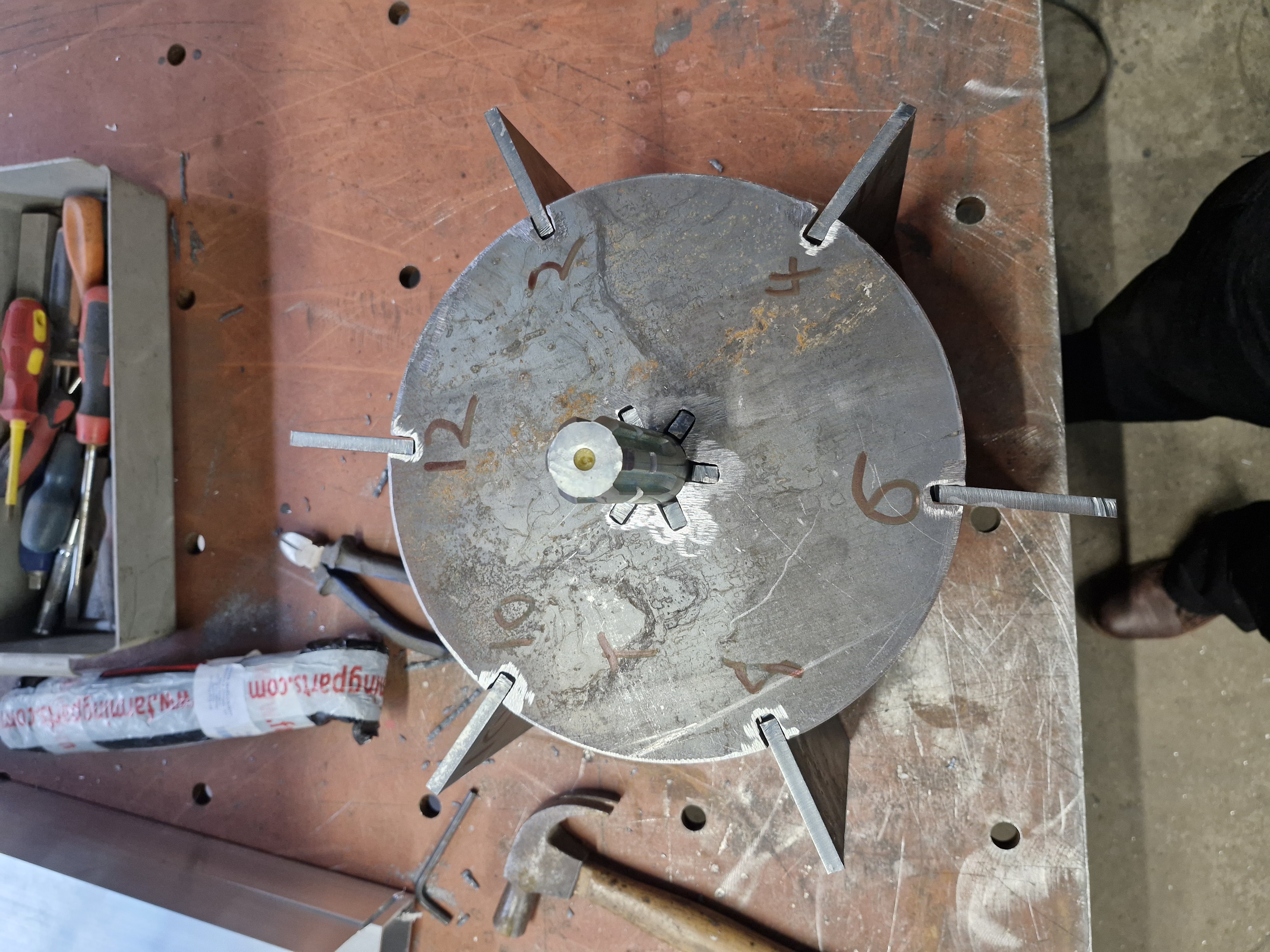

Welded adaptor assembly
3D-printed routing jigs
HDPE slot machining

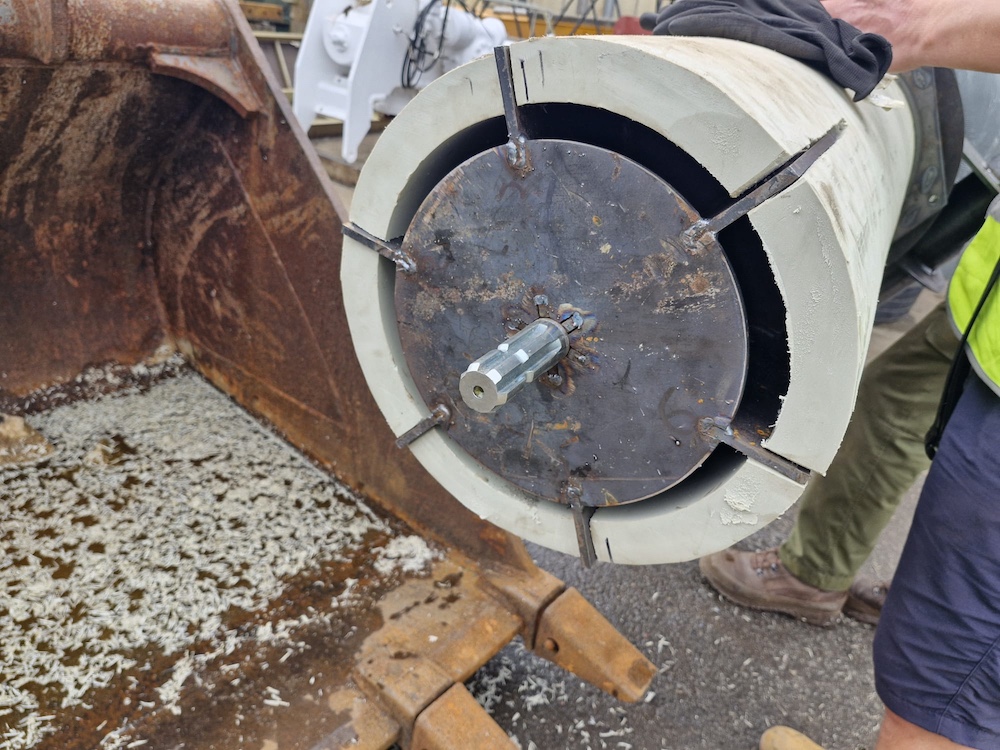

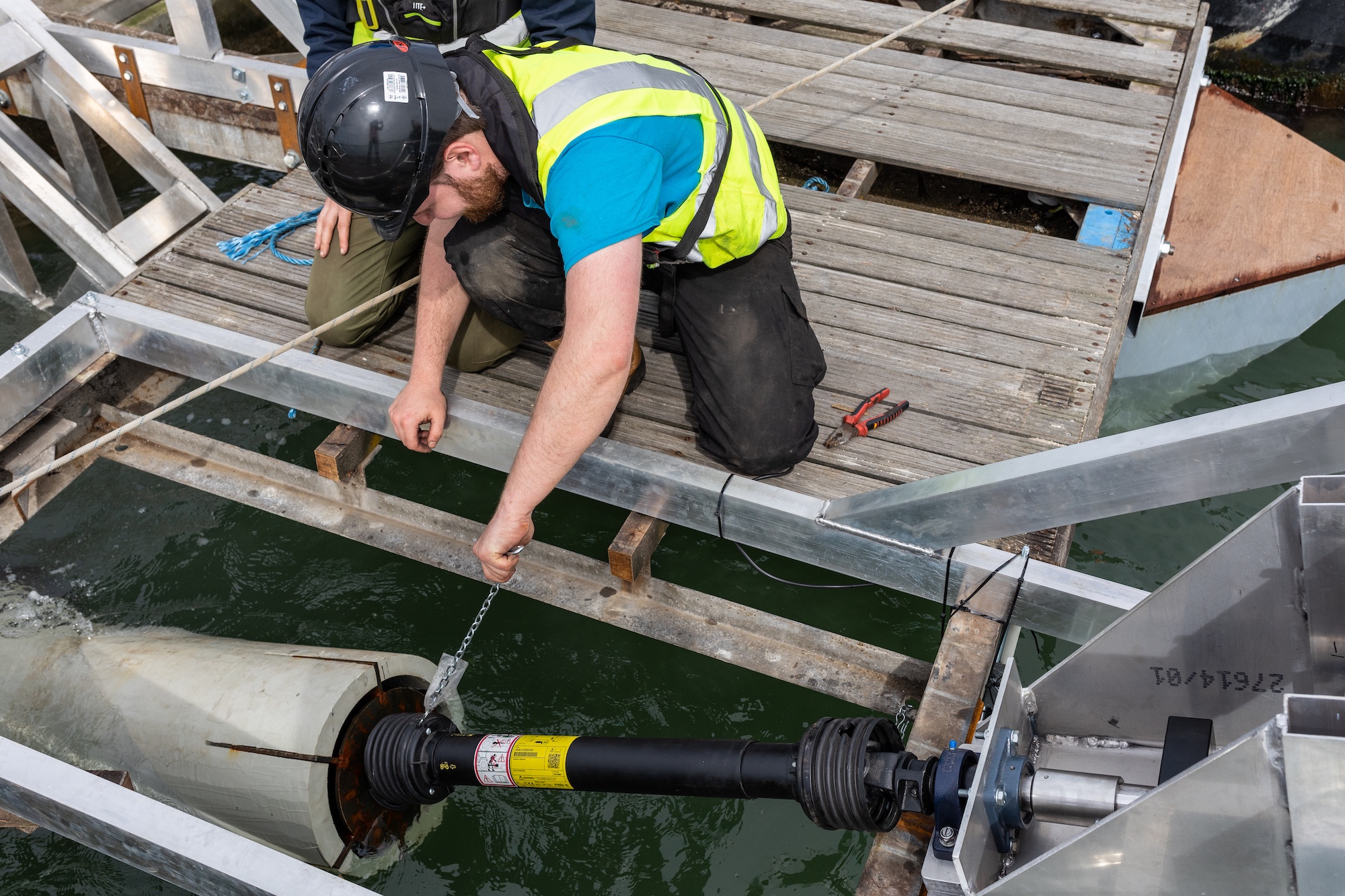

On-site deformation correction and installation
Spline compatibility design
Hand calculations and FEA comparison
Metal plate sizing and fabrication
Welded adaptor assembly
3D-printed routing jigs
HDPE slot machining
On-site deformation correction and installation
"Meeting the demand for standard PTO compatibility, this project delivered a robust adaptor that handled high torque while accommodating the challenges of HDPE construction."
